linux下socket编程再改进版

基于上次的改进版，实现了服务器的转发功能，基本实现了局域网聊天室的功能。

此版改进之处：

1、给client端开了一个线程，recv()函数在线程中单独处理，这样又可不必使用非阻塞的recv()了。

2、给服务器端成功accept()产生的confd加入一个链表中，当收到消息的时候，将转发标志flag置为1，转发的时候遍历链表，和接收到消息的confd不 同的就转发。

3、每当一个客户端退出时，收回线程id的同时，将此次连接的confd从链表中删除。

下面是代码：

//linklist.c
#include<stdio.h>
#include<stdlib.h>

typedef int elemType;

typedef struct listnode{
	elemType info;
	struct listnode * next;
}listnode;

listnode * linkListInit(listnode * head){
	head = NULL;
	return head;
}

listnode * addNode(listnode *head,elemType value){
	listnode *ptr = (listnode *)malloc(sizeof(listnode));
	ptr->info = value;
	if(head == NULL){
        ptr->next = NULL;
	}
	else{
        ptr->next = head;
	}
	head = ptr;
	return head;
}

listnode * findNode(listnode * head,elemType value){
	listnode *ptr = head;
	if(NULL == head)//0 elem
        return NULL;
	else if(NULL == ptr->next){ //1 elem
        if(value == ptr->info)
            return ptr;
        else
            return NULL;
	}
	while(ptr != NULL){
        if(value == ptr->info)
            return ptr;
        ptr = ptr->next;

	}
	return NULL;
}

listnode * delNode(listnode *head,elemType value){
	listnode *elemPtr = findNode(head,value);
	listnode *ptr = head;
	if(NULL == elemPtr)
        printf("Cannot find value: %d in list.\n",value);
	else{
        if(elemPtr == head ){
            if(head->next ==NULL)
                head = NULL;
            else{
                head = head->next;
            }
        }
        else if(elemPtr->next == NULL){
            while(elemPtr != ptr->next){
                ptr = ptr->next;
            }
            ptr->next = NULL;
        }
        else{
            while(ptr->next != elemPtr){
                ptr = ptr->next;
            }
            ptr->next = elemPtr->next;
        }
        free(elemPtr);
	}
	return head;
}

void printList(listnode *head){
	if(head == NULL)
        return ;
	listnode *ptr = head;
	while(ptr != NULL){
        printf("%d -> ",ptr->info);
        ptr = ptr->next;
	}
	printf("\n");
}










//server.c
#include<stdio.h>
#include<stdlib.h>
#include<string.h>
#include<sys/socket.h>
#include<sys/types.h>
#include<error.h>
#include<errno.h>
#include<arpa/inet.h>
#include<pthread.h>
#include<time.h>
#include"linklist.c"

#define MAX_LEN 100
#define PORT_NUM 4321
#define EXIT_FAIL_NUM 1
#define MAX_NUM 3

void trans(void *p);

struct trans_data{
	int fd;
	char buff[MAX_LEN];
	struct sockaddr_in info;
}p[MAX_NUM];

struct myTherad{
    pthread_t tid;
    int flag;
}myThread[MAX_NUM];

listnode *head;

int main(){
	int sockfd,confd,len,err,i=0;
	head=linkListInit(head);
    for(i=0;i<MAX_NUM;i++){
        memset(&myThread[i].flag,0,sizeof(int));
        printf("thread[%d] flag %d\n",i,myThread[i].flag);
    }
	struct sockaddr_in ser,cli;
	if((sockfd=socket(AF_INET,SOCK_STREAM,0))<0){
        perror("socket");
        exit(EXIT_FAIL_NUM);
	}
	printf("scoket_fd = %d\n",sockfd);
	bzero(&ser,sizeof(ser));
	ser.sin_family = AF_INET;
	ser.sin_port = htons(PORT_NUM);
	ser.sin_addr.s_addr = htonl(INADDR_ANY);
	if(-1 == bind(sockfd,(struct sockaddr *)&ser,sizeof(ser))){
        perror("bind");
        exit(EXIT_FAIL_NUM);
	}
	if(0 != listen(sockfd,10)){
        perror("listen");
        exit(EXIT_FAIL_NUM);
	}
	printf("Receiving message......\n");
    while(1){
        len = sizeof(cli);
        confd = accept(sockfd,(struct sockaddr *)&cli,&len);
        if(-1 == confd){
            perror("accept");
            exit(EXIT_FAIL_NUM);
        }
        for(i=0;i<MAX_NUM;i++){
            if(myThread[i].flag == 0){
                p[i].fd = confd;
                memcpy(&p[i].info,&cli,sizeof(p[i].info));
                err = pthread_create(&myThread[i].tid,NULL,(void *)&trans,(void *)&p[i]);
                if(0 != err){
                    printf("Can not create thread!\n");
                    exit(EXIT_FAIL_NUM);
                }
                myThread[i].flag = 1;
        printf("confd:%d\n",confd);
        head = addNode(head,confd);
//		printList(head);
                break;
            }
        }
        if(MAX_NUM  <= i){
            char message[100];
            memset(message,0,sizeof(message));
            strcpy(message,"服务器没有空余线程，连接即将关闭......");
            if( -1 ==send(confd,message,sizeof(message),0)){
                perror("send");
                exit(EXIT_FAIL_NUM);
            }
        }
    }
	return 0;
}


void trans(void *p){
	int i;
	int flag=0;
        struct tm *t;
	struct trans_data *ptr;
	ptr = (struct trans_data *)p;
	printf("线程创建成功，线程号:%lu\n",pthread_self());
        send((*ptr).fd,"服务器线程创建成功...\n连接成功！！！",100,0);
	while(1){
        memset((*ptr).buff,0,sizeof((*ptr).buff));
        int len;
        if((len = recv((*ptr).fd,(*ptr).buff,sizeof((*ptr).buff),0))<0){
                    perror("recv");
                    exit(EXIT_FAIL_NUM);
        }
        if(len ==0){
            for(i=0;i<MAX_NUM;i++){
                if(myThread[i].tid == pthread_self()){
                    myThread[i].flag = 0;
            printf("confd:%d\n",(*ptr).fd);
            head = delNode(head,(*ptr).fd);
//		    printList(head);
            printf("IP:%s\t端口号：%d 断开连接.\n",inet_ntoa((struct in_addr)(*ptr).info.sin_addr),(*ptr).info.sin_port);
            printf("线程:%lu 被收回\n",myThread[i].tid);
                    break;
                }
            }
            pthread_exit(NULL);
        }
        time_t timer;
        timer = time(NULL);
        t = localtime(&timer);
	flag = 1;
        printf("消息来自:\nIP:%s\t",inet_ntoa((struct in_addr )(*ptr).info.sin_addr));
        printf("端口号:%d\t",(*ptr).info.sin_port);
        printf("(%d:%d:%d)\n",(*t).tm_hour,(*t).tm_min,(*t).tm_sec);
        printf("confd:%d\t线程号:%lu\n",(*ptr).fd,pthread_self());
        puts((*ptr).buff);
        char message[1024];
        strcat(message,"\n来自IP:");
        strcat(message,inet_ntoa((struct in_addr)(*ptr).info.sin_addr));
        strcat(message,"\tPort:");
        char m[10];
        sprintf(m,"%d",(*ptr).info.sin_port);
        strcat(message,m);
        strcat(message,"\n消息：");
        strcat(message,(*ptr).buff);
        listnode *s = head;
        int l;
//		printList(head);
        while(flag){
            while(s !=NULL){
                if(s->info !=(*ptr).fd){
                    if((l=send(s->info,message,sizeof(message),0))<0){
                        perror("send");
                    }
                }
                s = s->next;
            }
            flag = 0;
        }
	}
}








//client.c
#include<stdio.h>
#include<stdlib.h>
#include<sys/socket.h>
#include<sys/types.h>
#include<netinet/in.h>
#include<unistd.h>
#include<string.h>
#include<error.h>
#include<errno.h>
#include<fcntl.h>
#include<pthread.h>

#define MAX_LEN 100
#define EXIT_FAIL 1
#define SERV_IP "127.0.0.1"
#define PORT_NUM 4321


void doRecv(void *p){
	char message[1024];
	int len;
	int *s = p;
	while(1){
        memset(message,0,sizeof(message));
//		int io_block_var = fcntl(*s, F_GETFL, 0);
//	        fcntl(*s, F_SETFL, io_block_var|O_NONBLOCK);
            if((len = recv(*s,message,sizeof(message),0))>0){
            puts(message);
                if(0 == strcmp(message,"服务器没有空余线程，连接即将关闭......")){
                        close(*s);
                        sleep(3);
                    exit(EXIT_FAIL);
            }
        }

	}
}

int main(){
	int sockfd,confd,len;
	char buff[MAX_LEN];
	int *p;
	struct sockaddr_in cli,ser;
	if((sockfd = socket(AF_INET,SOCK_STREAM,0)) == -1){
        perror("socket");
        exit(EXIT_FAIL);
	}
	printf("socket_fd = %d\n",sockfd);
	bzero(&ser,sizeof(struct sockaddr_in));
	ser.sin_family = AF_INET;
	ser.sin_addr.s_addr = inet_addr(SERV_IP);
	ser.sin_port = htons(PORT_NUM);
	if((confd = connect(sockfd,(struct sockaddr *)&ser,sizeof(struct sockaddr))) == -1){
        perror("connect");
        exit(EXIT_FAIL);
	}
	printf("正在连接......\n");
	sleep(2);
	while(1){
	pthread_t pid;
	int err;
	p = &sockfd;
	err = pthread_create(&pid,NULL,(void *)&doRecv,(void *)p);
        if(err != 0){
        printf("Can not create thread!!!\n");
        exit(EXIT_FAIL);
	}
	gets(buff);
//	fgets(buff,sizeof(buff),stdin);
	fflush(stdin);
        len = send(sockfd,buff,strlen(buff),0);
        if(len == -1){
            perror("send");
            exit(EXIT_FAIL);
        }
        memset(buff,0,sizeof(buff));
	}
    close(sockfd);
	return 0;
}

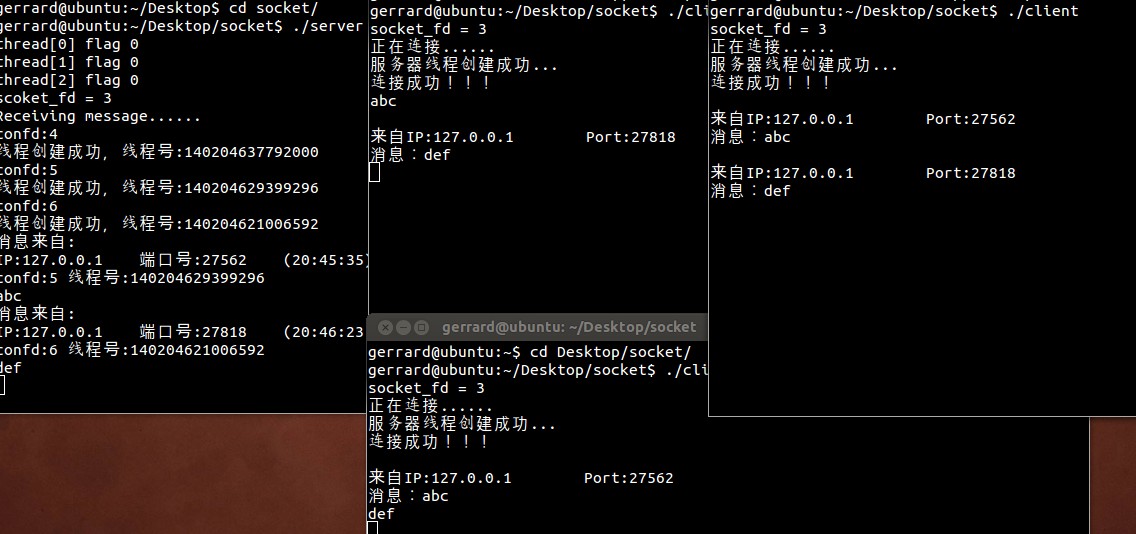

运行截图
